What an F-150 10-Speed Transmission Repair Costs After Warranty

What a 10-speed repair costs once Ford’s warranty ends

An out-of-warranty 10R80 transmission repair can be anything from a software reprogram to a full replacement. Kelley Blue Book’s dealer estimate for replacing one in a 2019 F-150 runs close to $9,300 in parts and labour, depending on your ZIP. What you’ll actually pay depends on your build date, your VIN’s recall status, and what the shop finds.

Past 5 years or 60,000 miles?

If you’re still inside that window, Ford’s powertrain warranty covers the transmission, so start at a dealer. If you’re past it:

• You drive a 2021 truck, or you have a replacement reman transmission: check the recalls first.
• You’re holding a quote: use the cost table and the five shop questions.
• You’re deciding whether to fix it at all: go to the last section.

Three things that set your bill

Your build date decides which Ford bulletin applies. A recall can pay for specific damage. The repair tier sets the price. Our breakdown of F-150 problems by year and what Ford covered shows where this transmission sits among every other documented defect.

ℹ️ Safety Note: Some 2021 F-150s are under an open recall because the transmission’s park pawl can engage while driving and damage the park system. A damaged park system can let a parked truck roll. Apply the parking brake every time you park, and have a Ford dealer inspect any wrench light or movement in Park before you drive.

Which F-150s the CDF drum bulletins actually cover

Your door-jamb build date decides which Ford document applies, not your model year.

Sources: NHTSA copies of TSB 25-2126 and TSB 24-2254; NHTSA recall filings 26V237 and 26V402. Checked 28 September 2026.

2017–2020 trucks

Ford’s TSB 25-2126 on harsh and delayed 10R80 shifts is dated 31 March 2025 and covers 2017–2020 F-150s with the 10R80. A 2017 F-150 with the six-speed is handled by downshift recall 26S28 instead.

2021–2022 trucks built by 15 Aug 2022

TSB 24-2254 for 2021–2022 builds is dated 23 August 2024 and excludes the hybrid transmission. Ford has revised both bulletins since, so ask your shop for the current version.

Built after that date

Trucks built on or after 16 August 2022 fall outside both bulletins. Neither bulletin says why, so read that as “not listed,” not as “fixed.”

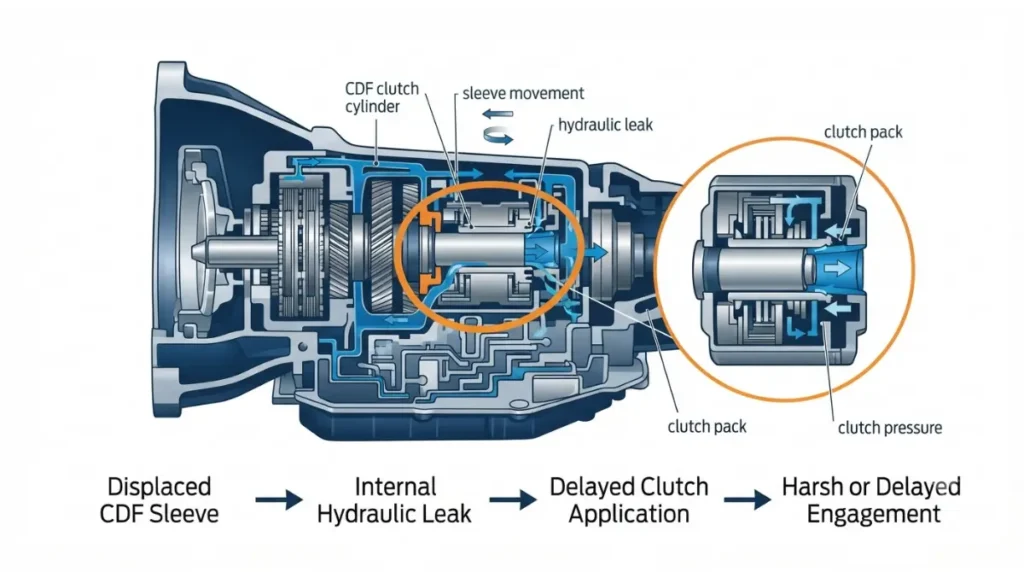

Why 10R80s shift harshly: the CDF sleeve leak

Ford’s bulletins blame harsh or delayed engagement on axial movement of the CDF clutch cylinder sleeve, which causes internal hydraulic leaks.

🔍 Why It Happens: The 10R80 applies its clutches with pressurised fluid routed through passages in that cylinder. If the sleeve slides out of position, fluid meant for a clutch leaks away. The clutch then applies late or hard, and you feel that as a clunk or a delayed engagement.

What Ford says moves

The bulletins name the sleeve and the leak, and nothing broader. Any quote that blames the CDF cylinder should say whether Ford’s leak test confirmed it.

Codes that point to it

The bulletins list trouble codes including P0751, P0752, P0731–P0736 and P2700–P2705. A stored code alone doesn’t prove the leak.

Why software alone may not fix it

A reprogram changes shift commands, but it can’t move a sleeve back into place. That’s why Ford’s procedure tests for leakage first. Our guide to F-150 10-speed transmission problems covers the other symptoms.

Out of warranty? Check these recalls before you pay

Two open recalls cover specific 10R80 damage whatever your mileage. Both statuses were checked 28 September 2026.

A TSB is not a free repair

Ford’s powertrain warranty coverage list includes all internal transmission parts and the torque converter for 5 years or 60,000 miles. A bulletin tells the dealer how to fix a fault. It doesn’t extend that coverage.

2021 park recall 26V402

📋 On the Record: NHTSA recall 26V402 (Ford 26S48) covers certain 2021 F-150s with park-by-wire.

• The fault: the park pawl may engage while the truck is moving and damage the park system.
• The remedy: dealers update the PCM software and replace damaged transmission components free.
• Status, 28 Sept 2026: open. Ford’s filing anticipates the remedy in April 2027.

This recall covers park-system damage only, not shift quality.

Reman units under 25E070

📋 On the Record: NHTSA recall 25E070 (Ford 25SB3) covers certain remanufactured 10R80s that were installed as service parts in 2017–2021 vehicles.

• The fault: the unit may be missing its T10 bearing, so it may not hold Park.
• The remedy: on vehicles with 8,000 miles or less, dealers inspect the transmission and replace it free if needed.
• Status, 28 Sept 2026: open.

✅ Do This: Before you approve any quote, ask the dealer two things:

1. Run your VIN against recalls 26S48 and 25SB3.
2. State in writing whether any park damage they find falls under 26S48.

You can run the same VIN check first with our Recall & VIN Lookup Helper.

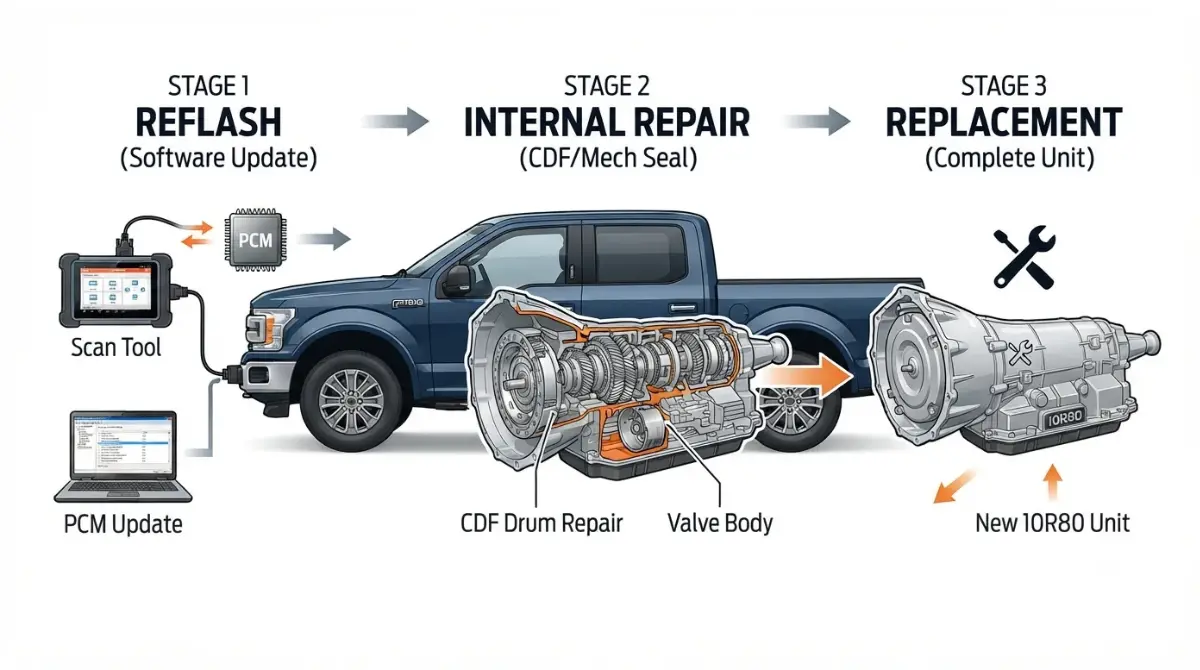

Reflash, CDF repair, rebuild or reman: what each costs

Expect the bill to scale with how far into the transmission the shop has to go.

💵 On these numbers: Costs shown are typical ranges, not quotes. Labour rates vary sharply by region and between dealer and independent shops, and parts pricing moves. Use these to judge whether a quote is in the right neighbourhood, not to predict your invoice.

Dealer replacement quotes, with the maths

💵 What It Costs: These are Kelley Blue Book dealer estimates, parts plus labour, before tax.

• 2019 F-150, ZIP 77002 (Houston): $6,112–$6,490 in parts plus $2,592–$2,808 in labour, totalling $8,704–$9,298.
• 2021 F-150 SuperCrew, ZIP 93454: the fair range is $5,238–$7,657, and the dealer estimate of $7,117–$7,657 sits at the top of it.

In both examples, labour is about 30% of the dealer total.

Rebuild vs reman

A rebuild repairs your own transmission. A reman swaps it for one rebuilt elsewhere. Compare written quotes, including each shop’s warranty, and use the Repair Cost Estimator for your ZIP.

Five questions to ask before approving a 10R80 quote

A shop that followed Ford’s procedure can answer all five in writing.

Did they run Ford’s leak test?

1. Which codes are stored? Match them against the bulletin’s code list.
2. Which bulletin, and which revision? Both bulletins have been superseded, so the shop should name the current one.
3. Did the leak test fail? Ford’s procedure checks for leakage before replacing the cylinder, so ask to see the result.

Is the cooler being flushed?

4. Is a cooler flush on the quote? The bulletin tells technicians to flush the fluid cooler as necessary after internal service.
5. What warranty covers the work? Get the term, and whether it covers labour, in writing.

Fixing vs selling a high-mileage 10-speed F-150

This decision comes down to two written numbers, not a rule of thumb.

What delay risks

A confirmed hydraulic leak won’t correct itself. Ford’s bulletin already tells technicians to inspect and replace other components as needed during internal service, so the bill can grow beyond the cylinder itself.

The break-even test

Get two valuations: the truck as-is with the fault disclosed, and the truck repaired. If the repair quote is more than the gap between those two numbers, selling as-is costs you less.

Frequently asked questions

Your next step

1. Run your VIN against recalls 26S48 and 25SB3.
2. Get the stored codes.
3. Get a written quote that names the Ford bulletin revision the shop followed.

With those three things you’ll know whether the quote is fair, whether Ford owes part of it, and whether the truck is worth fixing.
