Confirmed F150 10 Speed Transmission Problems, 2017–2020 Trucks
Table of Contents

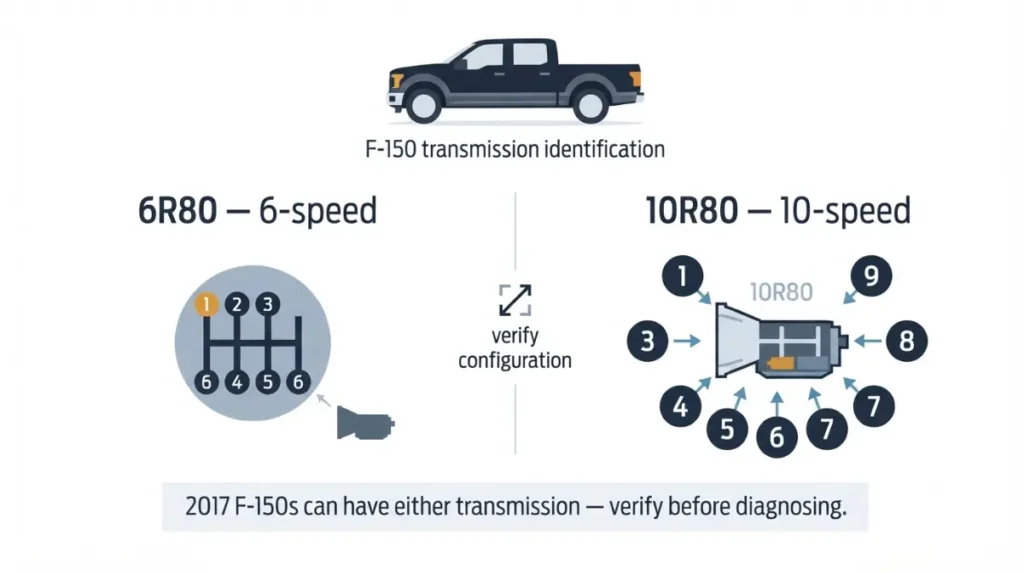

Does your F-150 actually have the 10-speed?
Ford’s 10R80 10-speed automatic reached the F-150 partway through 2017, so confirm your truck has one before anything else.
- Harsh or delayed shifts on a 10-speed: read straight through.
- Holding a repair quote: skip to the cost section.
- A 2015–2017 six-speed that downshifts on its own: that’s a different defect, covered in the recall section below.
- A 2011–2014 six-speed: see our breakdown of the 2011–2014 F-150 downshift recalls.
- Any other year or system: start with F-150 problems by year.
2017: only some trucks
NHTSA’s investigation file states that 2017 F-150s were built with either the six-speed 6R80 or the 10R80. Ford’s first 10-speed bulletin covers the 2017 F-150 and Raptor, and its labor table names the 3.5L EcoBoost.
2018–2020: most trucks
Ford bulletin 18-2274 covers 2018 F-150s with the 2.7L, 3.5L or 5.0L paired to the 10R80. The documents we checked don’t confirm every 2018–2020 configuration, so verify yours from the window sticker or a dealer VIN lookup.
ℹ️ Safety Note: The transmission controls when and how power reaches the wheels, and a harsh or delayed engagement can make low-speed maneuvering unpredictable. This article is for general understanding only; have any shifting fault inspected promptly by a qualified technician, and before you tow.

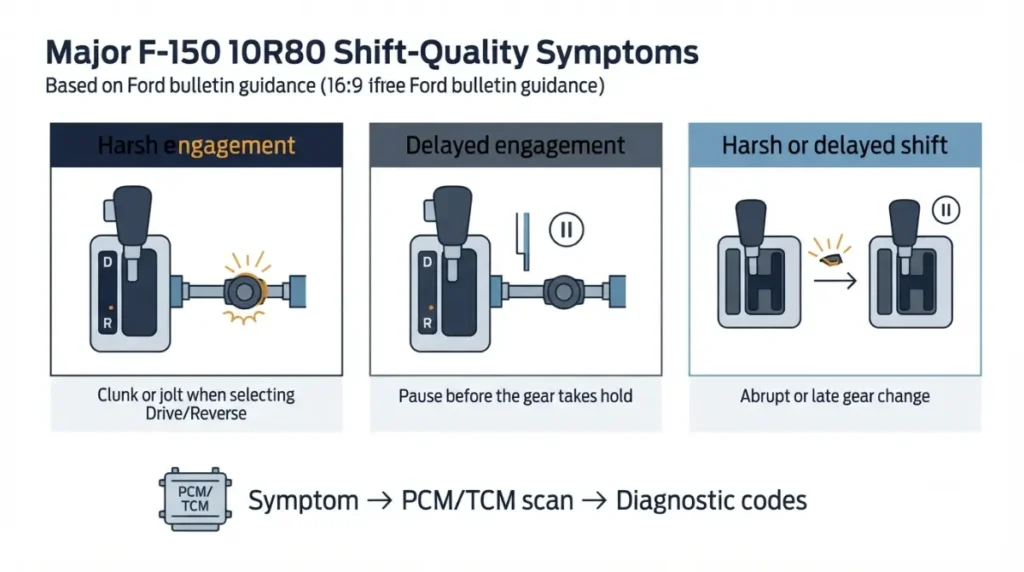

The symptoms Ford itself lists
Ford’s current bulletin for 2017–2020 F-150s, TSB 25-2126, describes the complaint in five parts.
Engagement vs. shift complaints
- Harsh engagement: a clunk or jolt when you select Drive or Reverse.
- Delayed engagement: a pause before the gear takes hold.
- Harsh or delayed shift: a hard change between gears, or one that arrives late.
Owners in forum threads tend to call this the “10-speed clunk.” Use the bulletin’s terms with your service advisor instead.
The codes that show up
The bulletin lists 29 diagnostic trouble codes, P0751 through P07F7. These are shift-solenoid, clutch apply-timing (P2700–P2708) and incorrect-ratio codes, stored in the powertrain control module (PCM) or transmission control module (TCM). Early 2017 trucks built on or before 1 August 2017 had their own code, P0711, in bulletin 18-2079.
✅ Do This: Ask the shop to pull codes from both the PCM and the TCM, and to reference TSB 25-2126 or its latest revision. Ford’s bulletin says the codes can be stored in either module.
What Ford says is causing it
Ford’s bulletins name three causes of harsh or delayed shifts on 2017–2020 10R80 trucks:
- the solenoid ID strategy in the software,
- sticking valves in the main control valve body,
- axial movement of the CDF clutch cylinder sleeve.
Software and solenoid strategy
A 2023 revision said the adaptive calibration may fail to adjust to hardware break-in over time. That’s why every bulletin starts with reprogramming and an adaptive learning drive cycle.
Sticking valve body valves
If reprogramming doesn’t cure it, Ford’s diagnostic path moves to the main control. This is the valve assembly that routes fluid to each clutch.
The CDF clutch cylinder sleeve
By March 2025, Ford attributed the condition to one mechanical cause: the CDF cylinder sleeve moving and leaking fluid from the hydraulic circuit.
🔍 Why It Happens: Clutches inside an automatic apply when pressurized fluid pushes on them. If the sleeve shifts, some of that fluid escapes, so the clutch grabs late or unevenly, which you feel as a delay or a bang. The computer sees the timing is wrong and stores the codes above.
Ford’s bulletin trail, 2018 to 2025
Ford revised its 10R80 shift-quality guidance repeatedly after 2018. Each revision moved the fix from software toward hardware.
| Bulletin | Date | Applies To | What Ford Directed |
|---|---|---|---|
| 18-2079 | 2 Mar 2018 | 2017 F-150/Raptor, built ≤1 Aug 2017 | PCM reprogram |
| 18-2274 | 7 Sep 2018 | 2018 F-150 2.7L/3.5L/5.0L, built ≤15 May 2018 | PCM reprogram |
| 23-2152 | 2023 | 2017–2020 F-150 and other 10R80 models | Codes, reprogram, adaptive drive cycle |
| 24-2046 | 22 Feb 2024 | 2017–2020 F-150 and other 10R80 models | Adds valve body and CDF sleeve checks |
| 25-2126 | 31 Mar 2025 | 2017–2020 F-150, 2018–2020 Mustang | CDF cylinder repair per procedure |
Source: Ford TSBs as filed in NHTSA’s bulletin archive; 24-2046 via a service-information mirror.
The 2018 reflash bulletins
Both 2018 bulletins were software-only and limited by build date. A truck built after those dates was never in their scope.
2021–2024: valve body and CDF added
By October 2021 Ford had reissued its 2017–2020 bulletin to raise labor time allowances. The 2024 revision named sticking valves and CDF sleeve movement alongside software.
The current bulletin
📋 On the Record: Ford TSB 25-2126, dated 31 March 2025 and superseding 25-2018, covers 2017–2020 F-150s with the 10R80 in North American markets and attributes the condition to CDF sleeve movement causing hydraulic leaks. Status checked 25 September 2026.
Is there a recall on the F-150 10-speed?
As of 25 September 2026, no safety recall covers shift quality on 2017–2020 F-150 10-speed transmissions. The only 10R80 recall covers certain remanufactured replacement units.
TSBs vs. recalls
A bulletin is repair guidance, not free repair. Ford’s bulletins state that warranty and service-plan limits are not changed by the TSB.
The one 10R80 recall: remanufactured units
Recall 25E070 (Ford 25SB3) covers some remanufactured 10R80s used as service parts in 2017–2021 vehicles. These units may be missing a bearing that holds Park, which is a rollaway risk. If your truck received a replacement transmission, run it through our [Recall & VIN Lookup Helper].
The 2026 downshift recall is for six-speed trucks
Recall 26V237 (Ford 26S28) covers 2015–2017 F-150s with the six-speed, built through 18 August 2017. NHTSA’s engineering-analysis summary explicitly excluded 10R80 trucks. Details are in our 26S28 downshift recall guide.
Warranty and the lawsuit
Ford’s powertrain warranty runs five years or 60,000 miles from the warranty start date, per Ford’s powertrain coverage page. A truck first sold before 25 September 2021 is past the time limit at any mileage.
✅ Do This: Ask the dealer to check your VIN for open campaigns and any Ford Extended Service Plan. Also ask whether a remanufactured 10R80 was ever installed, and when.
From reflash to CDF repair: what each step costs
Cost depends on how far down Ford’s diagnostic path your truck goes.
💵 On these numbers: Costs shown are typical ranges, not quotes. Labour rates vary sharply by region and between dealer and independent shops, and parts pricing moves. Use these to judge whether a quote is in the right neighbourhood, not to predict your invoice.
The software step
Ford’s 2018 bulletins allowed 0.3 labor hours for the PCM reprogram. Expect diagnosis time on top.
Valve body and CDF repair
The 25-2126 procedure includes transmission removal and a CDF cylinder and seal kit.
Rebuild or replacement
💵 What It Costs: Multiply your shop’s posted hourly rate by the labor time, then add parts, fluid and diagnosis.
Before your next shop visit
The right questions keep a harsh-shift complaint from ending at “reflashed, could not duplicate.”
What to bring
- Your VIN, plus prior repair orders showing which bulletins were performed.
- Notes on when the symptom happens: cold or warm, which gears, towing or empty.
What to ask
- Which revision of the harsh/delayed-shift bulletin applies to this truck?
- Were codes pulled from both modules, and is the software current?
⚠️ Watch Out: Harsh or delayed engagement can make parking-lot and trailer maneuvering unpredictable. Have the truck inspected before your next tow. Check open recalls first with NHTSA’s recall lookup .
F-150 10-speed transmission FAQ
1. Is there a recall on the F-150 10-speed transmission?
No shift-quality recall covers 2017–2020 F-150 10-speed transmissions; recall 25E070 covers only certain remanufactured replacement units.
2. What is the CDF drum problem on the F-150 10-speed?
Ford’s TSB 25-2126 says the CDF cylinder sleeve can move and leak fluid, causing harsh or delayed shifts. Have it diagnosed by a qualified technician.
3. Does a reflash fix F-150 10-speed shifting problems?
Sometimes. Ford’s bulletins start with reprogramming, then move to the valve body and CDF cylinder if symptoms persist.
4. Which F-150 years have the 10-speed transmission?
Some 2017 trucks, including the 3.5L EcoBoost, plus 2018 trucks with the 2.7L, 3.5L or 5.0L; confirm yours by VIN.
5. Does the 2026 F-150 downshift recall cover 10-speed trucks?
No. Recall 26V237 covers 2015–2017 F-150s with the six-speed, built through 18 August 2017.
6. Will Ford cover an F-150 10-speed repair out of warranty?
A TSB doesn’t extend coverage; Ford’s powertrain warranty runs five years or 60,000 miles from the start date. Ask the dealer about any service plan.
7. Which codes point to F-150 10-speed transmission problems?
TSB 25-2126 lists 29 codes, P0751 through P07F7, covering shift-solenoid performance, clutch apply timing and incorrect gear ratios.
8. How much does an F-150 10-speed transmission fix cost?
Ford allowed 0.3 labor hours for the 2018 reflash; CDF repair requires transmission removal, so it costs far more. Get a written quote.
9. Is it safe to keep driving an F-150 with harsh 10-speed shifts?
Harsh engagement can make low-speed and trailer maneuvering unpredictable on a 10-speed. Have it inspected before your next tow.
10. What is the latest Ford TSB for the F-150 10-speed?
The latest confirmed on NHTSA for this F-150 10-speed problem is TSB 25-2126, dated 31 March 2025; a later revision is pending verification.
What to do next
Confirm your truck has the 10R80, match your symptoms to TSB 25-2126, and bring that bulletin number and a code printout to the shop. Check your VIN for open campaigns before authorizing work. The only 10R80 recall covers remanufactured units, and the 2026 downshift recall applies to six-speed trucks.
